schematics for floppy disk interfaces

[nikosdoykas]

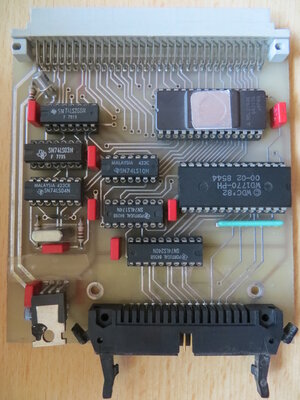

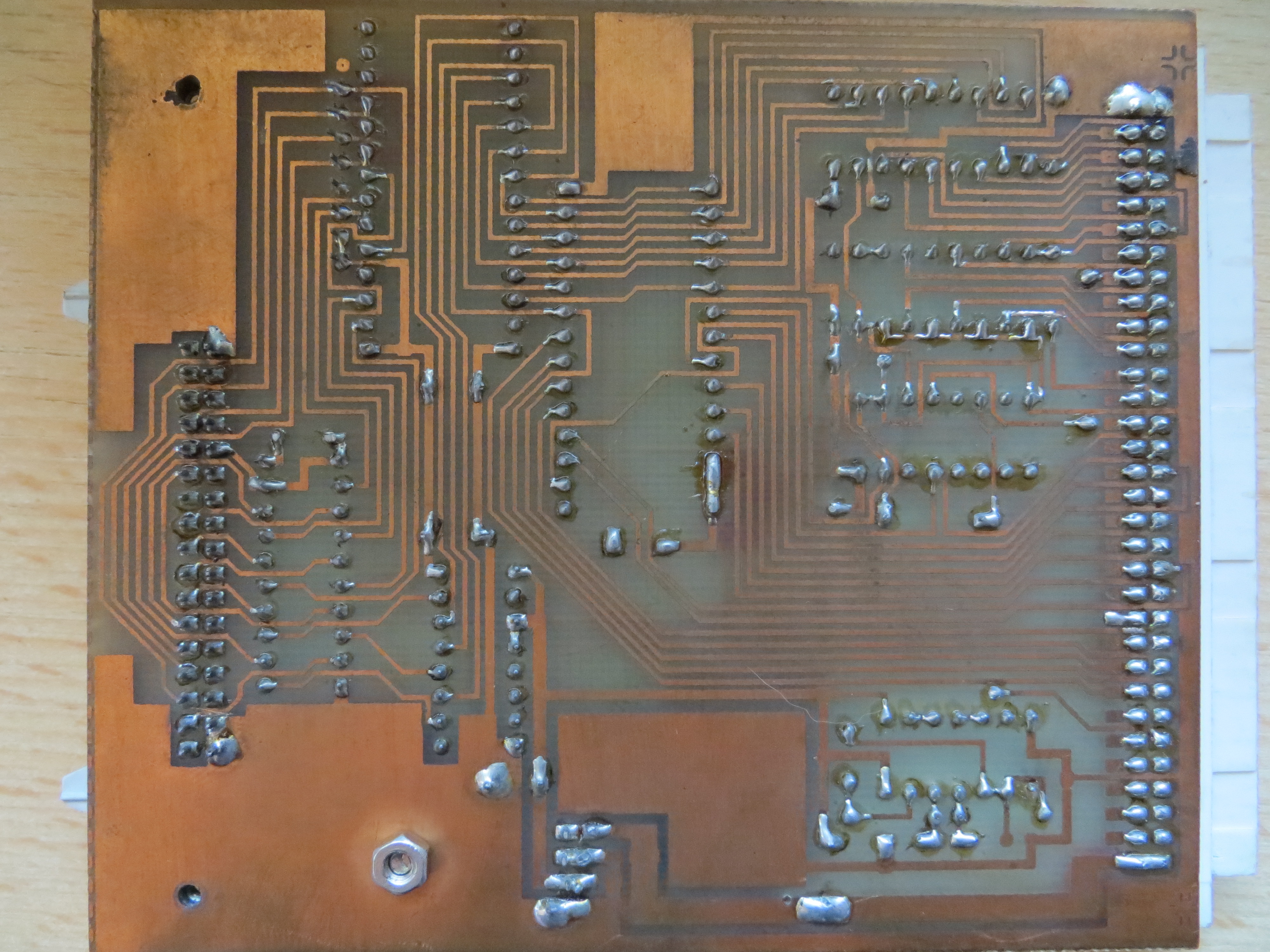

so Jungsis Corner Community(Jungsi member )has 2 QL disk controlers i ask form him hi res pictures of them.... enjoy

so any CUMANA schematics

actully in greek language schematics call =σχηματικα ....(σχημα= circle , square ext)

[nikosdoykas]

Jungsis Corner Community(Jungsi member ) olso read the rom file of the x disk floppy controller

QL Disk Interface Wolf Computer rom.rar

(6.37 KiB) Downloaded 251 times

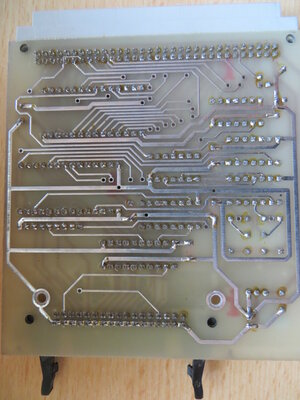

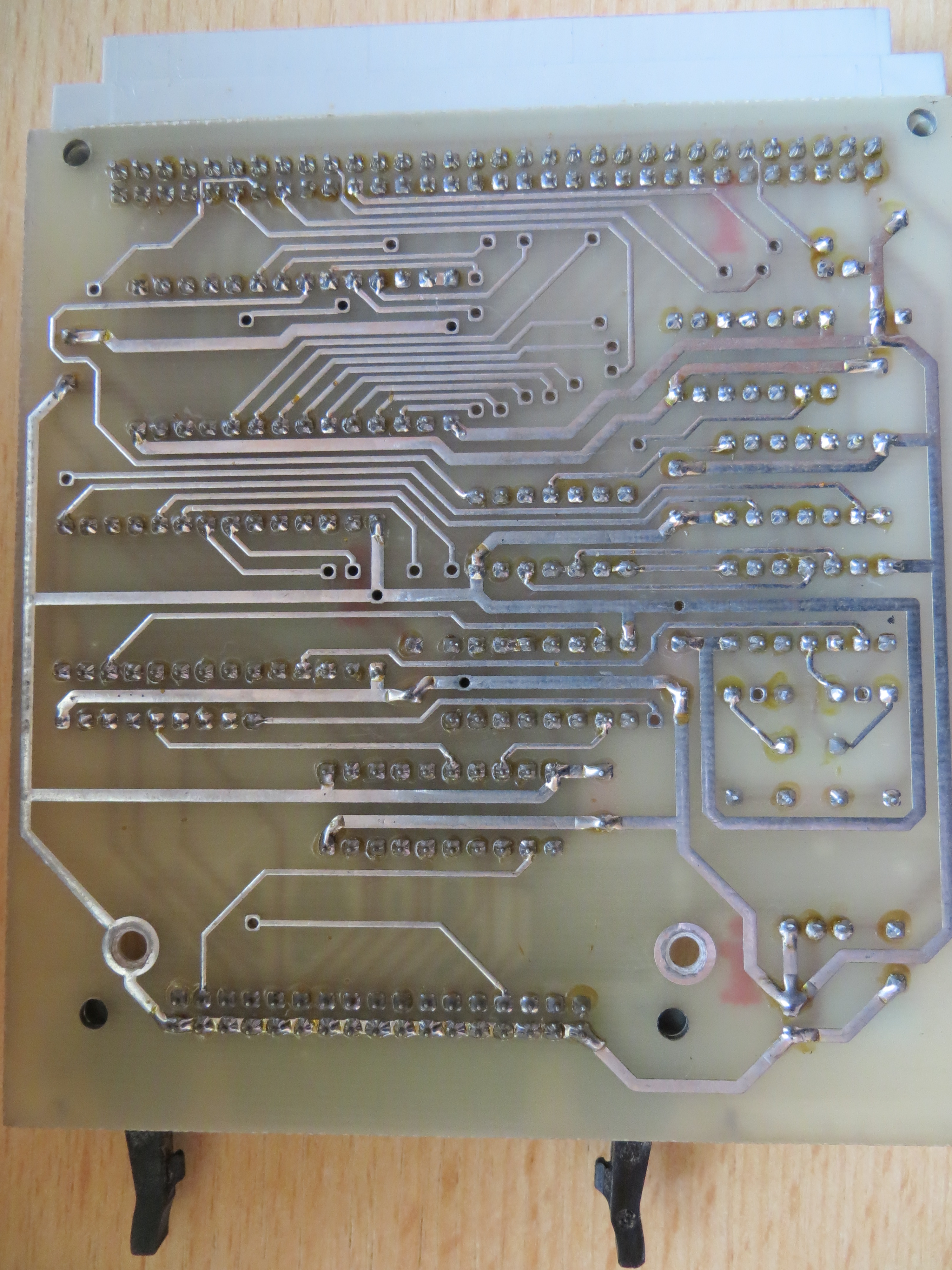

..... he sent me hires pics of the top of the board so i re draw the schematic of this ....

I AMNOT SURE ABOUT IT... IF ANY ONE WANT TO CHECK ... BECAUSE TOP BOARD HAVE HIDDEN TRACKS UNDER IC BASES....AND TELL ME WHAT CHANGES HAD BE DONE ....

[nikosdoykas]

BUSTED

[nikosdoykas]

so i take trump card schematic and... pisc of 0 kb trump disk card and i draw the schematic of this... i see that one of the 74ls175 that connect on d4-5-6-7 controls only the ds 2-3 (drives 3-4) so can removed to control only 2 drives?

the remain empty pins 74ls04 in pics has 0 ohm resistors.....

[nikosdoykas]

so has any one the 1.19 rom for q disk?

[nikosdoykas]

Jungsis Corner Community(Jungsi member ) olso read the rom file of the x disk floppy controllerQL Disk Interface Wolf Computer rom.rar ..... he sent me hires pics of the top of the board so i re draw the schematic of this ....1.png
I AMNOT SURE ABOUT IT... IF ANY ONE WANT TO CHECK ... BECAUSE TOP BOARD HAVE HIDDEN TRACKS UNDER IC BASES....AND TELL ME WHAT CHANGES HAD BE DONE ....

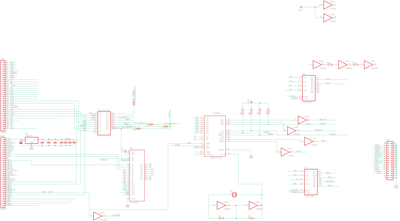

this is BUSTED HAS 2 MISTAKES.........DONT USE IT.....

[nikosdoykas]

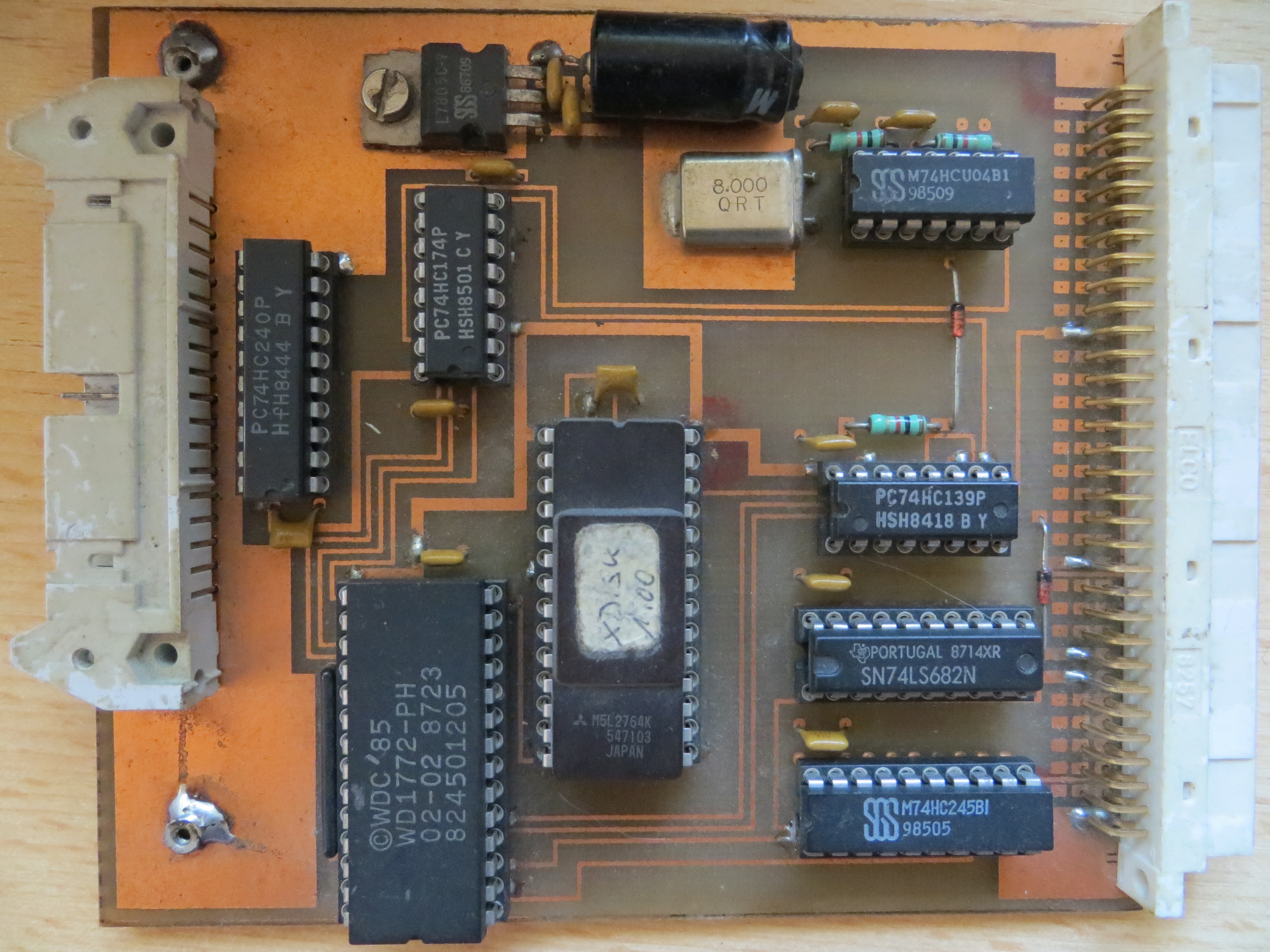

SO FINALLY.... I GOT MY CST Q-DISK CLONE WORKING.......
IT READS HFE FILES FROM GOTEK (720KB IMG-2.01MB HFE)

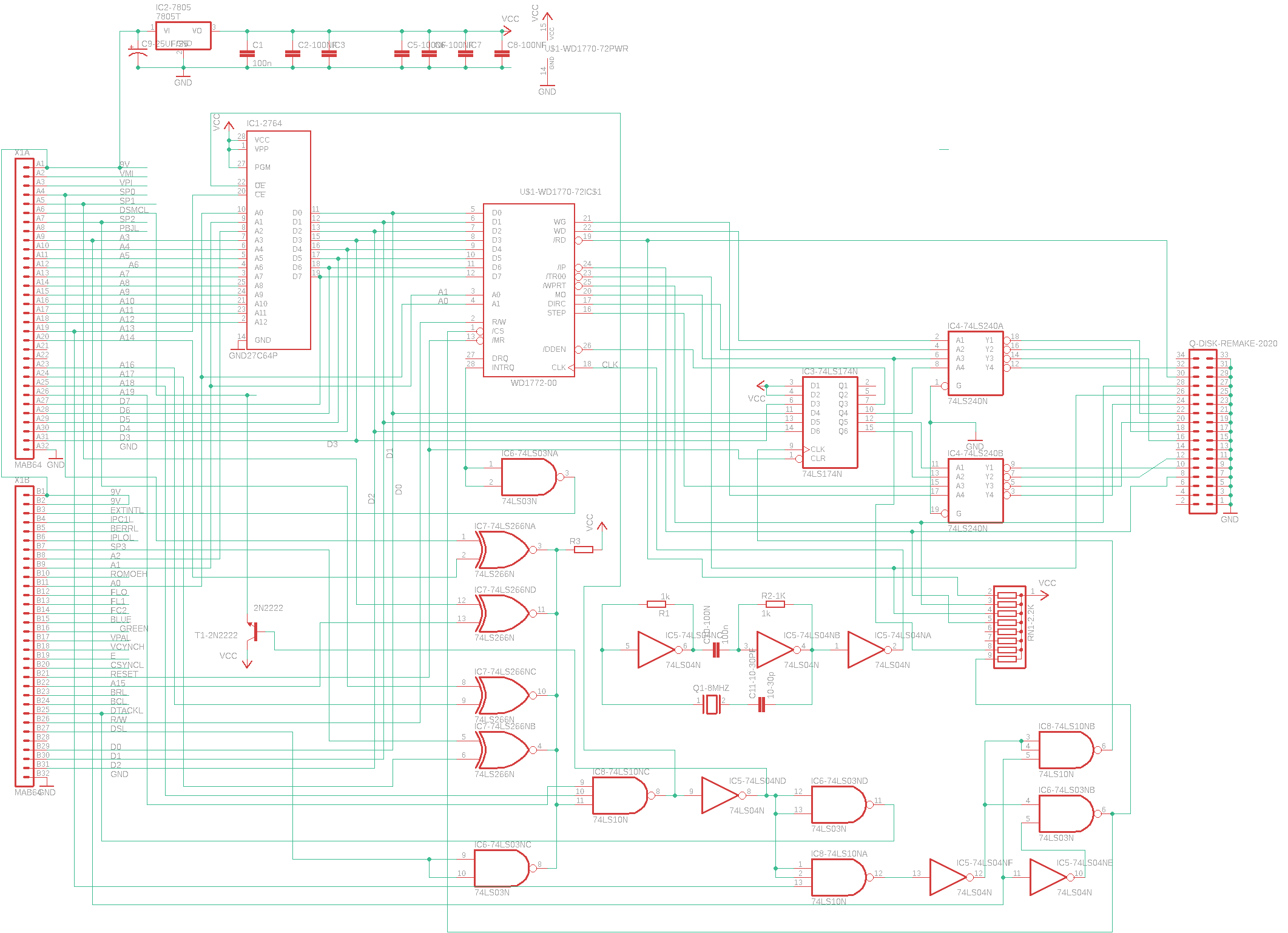

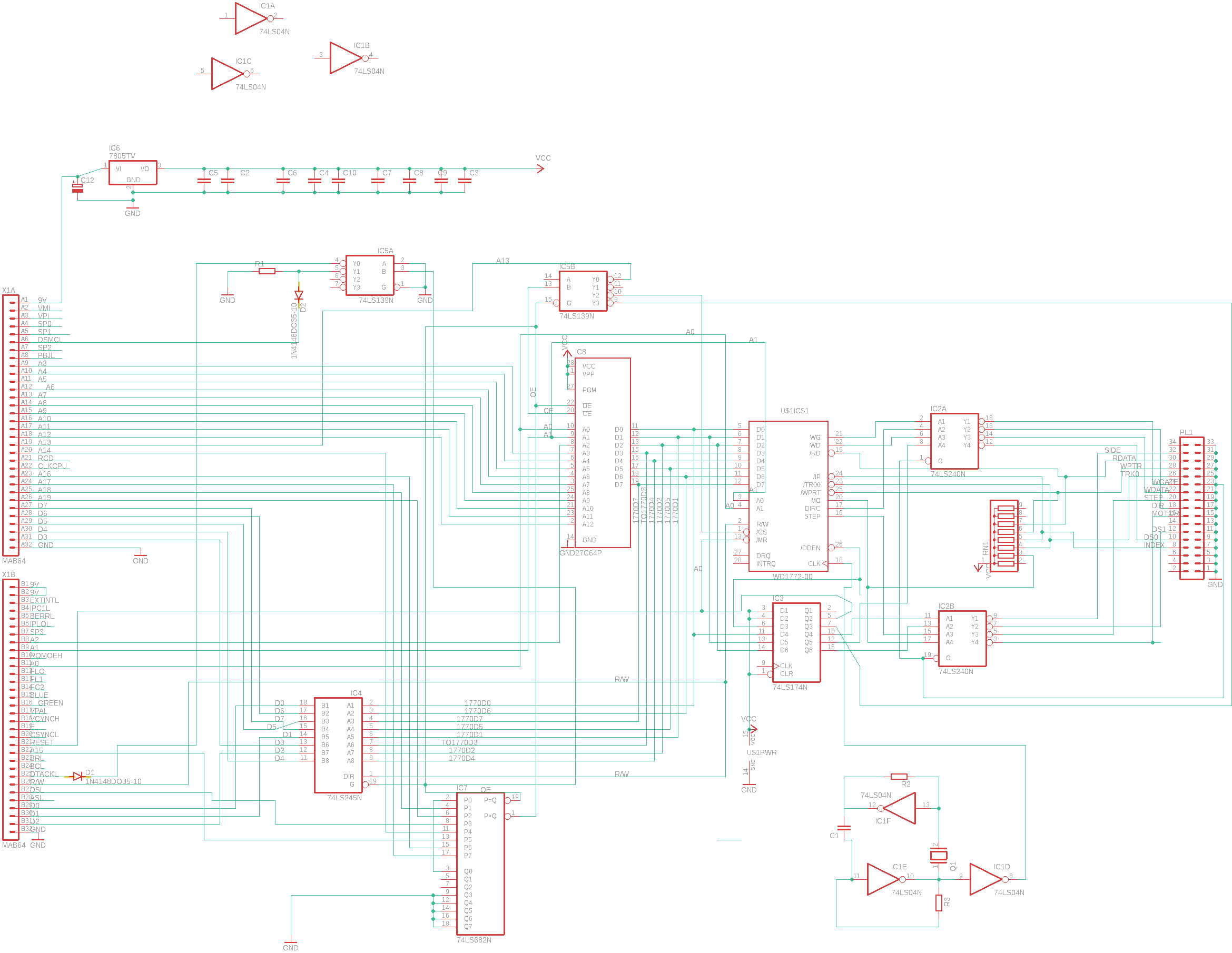

THE NEW SCHEMATIC ITS THIS.....(100% VERIFIED)TESTED WORKING
IF SOME ONE NEED GERBERS P.M ME...

[Maskenlos]

Congrats that you got it running! Great work!

Would be nice if you could share the schematics and the Gerber with me!

Thanks, Stephan

[KINGCHEF]

Hi, and HAPPY NEW YEAR!

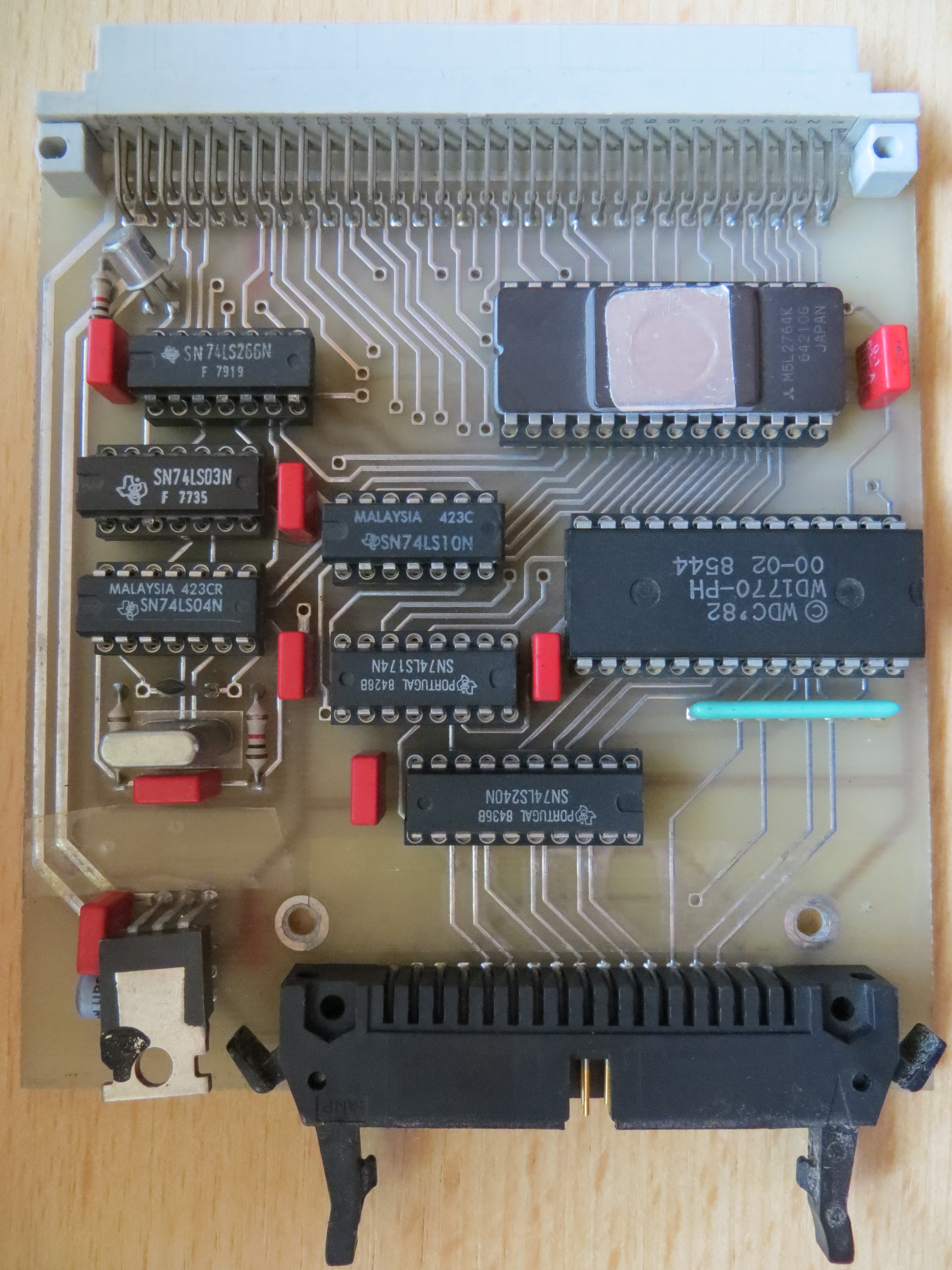

Just for information there is PCB diagram ( both sides ) and schematics for the OPD disk interface from Computer 1 on the RWAP website. It's about as simple as they get and might give basic understanding of how it's all arranged.

https://www.rwapsoftware.co.uk/oneperde ... 0Notes.pdf

Dave

[Chr$]

Hi, and HAPPY NEW YEAR!

Just for information there is PCB diagram ( both sides ) and schematics for the OPD disk interface from Computer 1 on the RWAP website. It's about as simple as they get and might give basic understanding of how it's all arranged.

https://www.rwapsoftware.co.uk/oneperde ... 0Notes.pdf

Dave

That's smart. Is the data for the EPROM available somewhere? Perhaps I will go FDD on my OPD. Rich (if you see this), is that the type of disk interface that you said you had for the OPD but doesn't work?
