HBC connections for microdrives

[moger4]

anyone have any info on these ? im looking to get or make a plug as its a pig to put the ribbons back
proper fiddly
any help , much appreciated

[t0nyt]

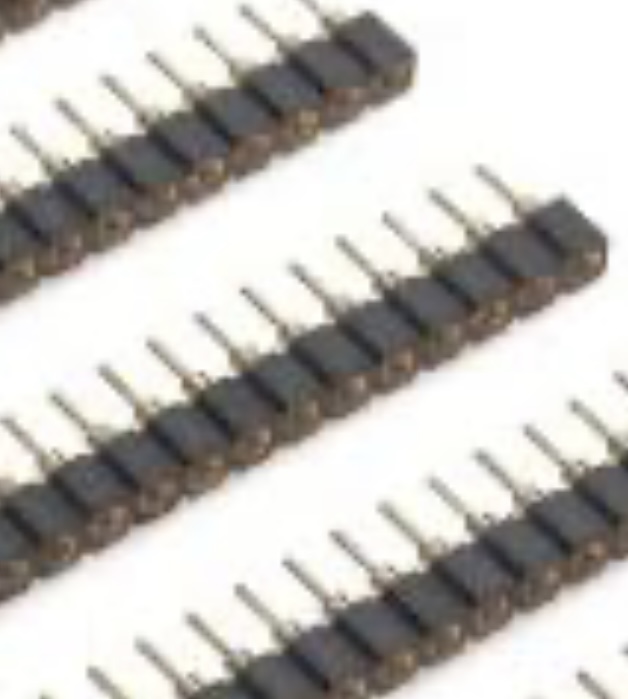

I’ve no idea what an HBC connector is but I use these (2.54mm SIL Turned Pin M/F) connectors. Fairly easy to attach to ribbons and easy to plug into mobo. Obviously need to be careful when unplugging from mobo not to pull out ribbon but I’ve had no issues and I’m really butter fingered

[Tesla]

If you refer to microdrive ribbons, the best solution is t0nyt's. I have found them in aliexpress.
Best regards
Marco

[Chris_68]

Hi

If you have low temp solder paste then use that and solder the ribbon cable to the turned pin connector

/Chris

[Popopo]

Rounded pins are great.
Also I would advice you IDC male connector. Check out my video about how to install an MPD and you will understand what I mean.
Of course... it implies that perhaps you must also solder something (or not) in the MDVs PCB
