Sandy Q board PAL16R4ACN file

Post by chriskgnr »

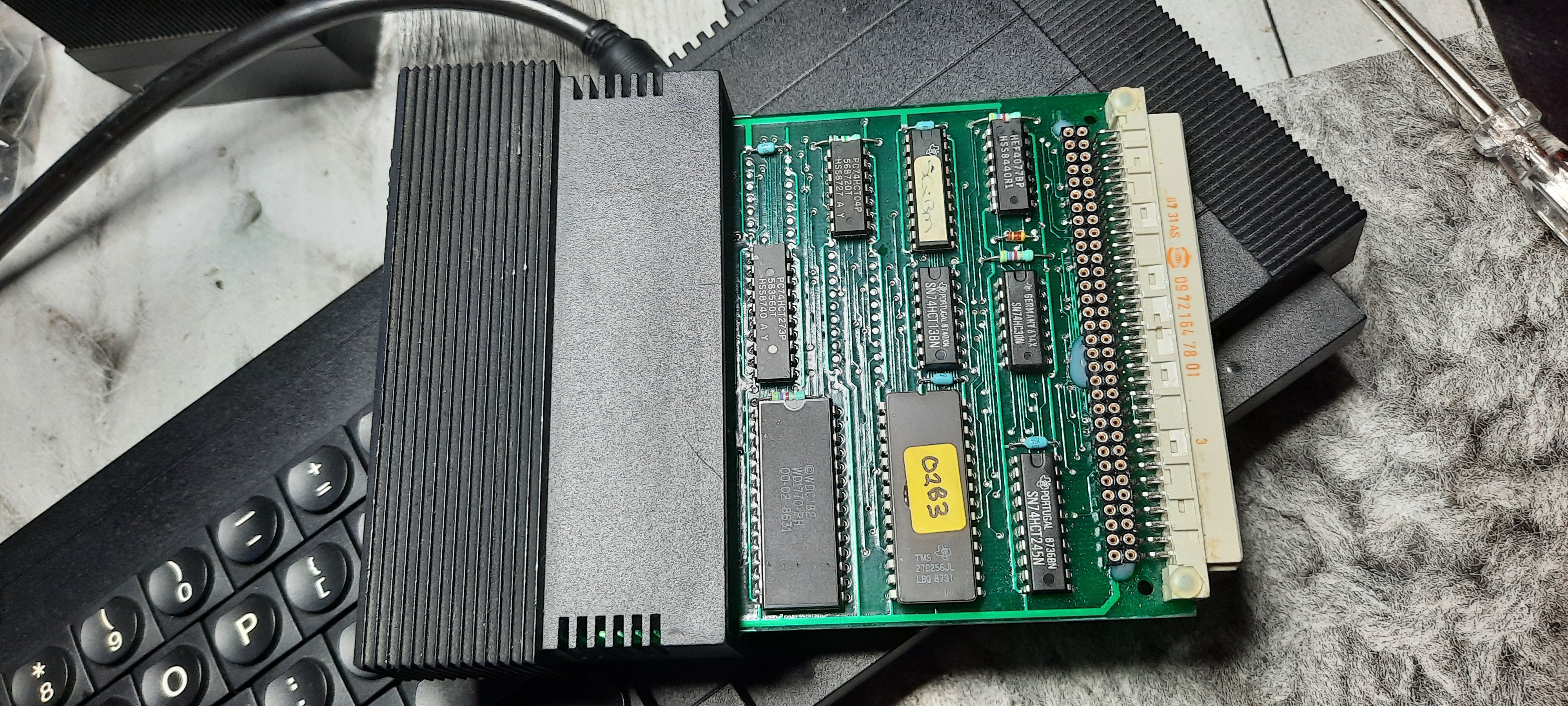

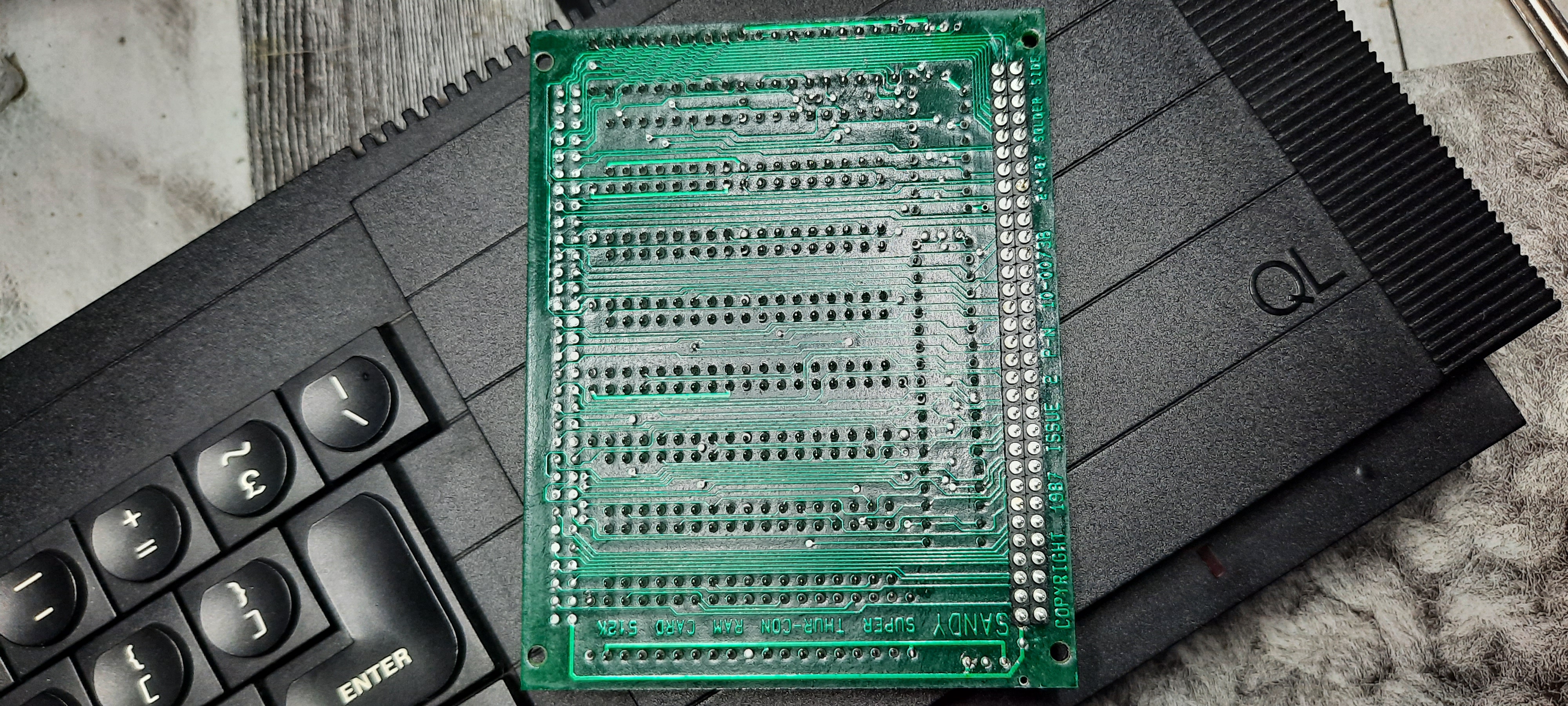

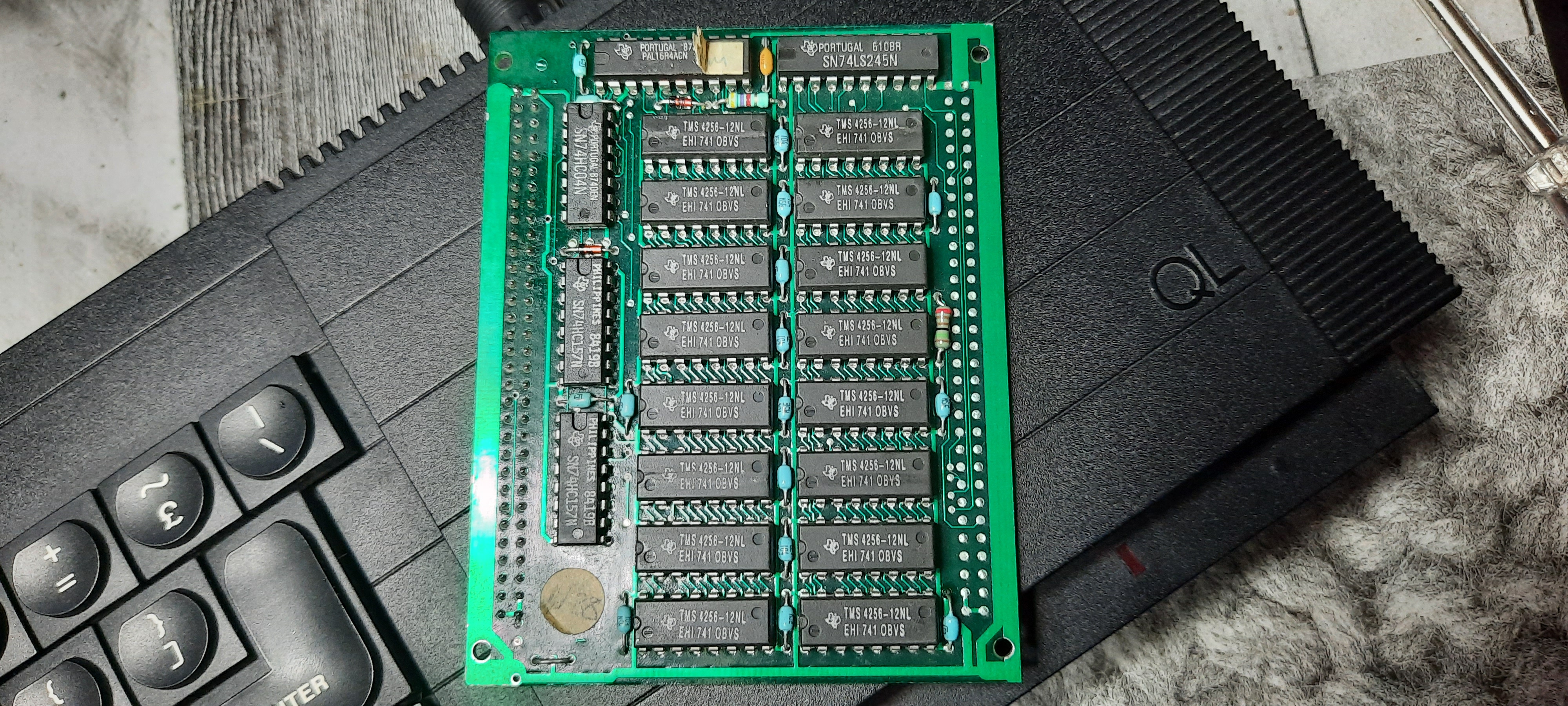

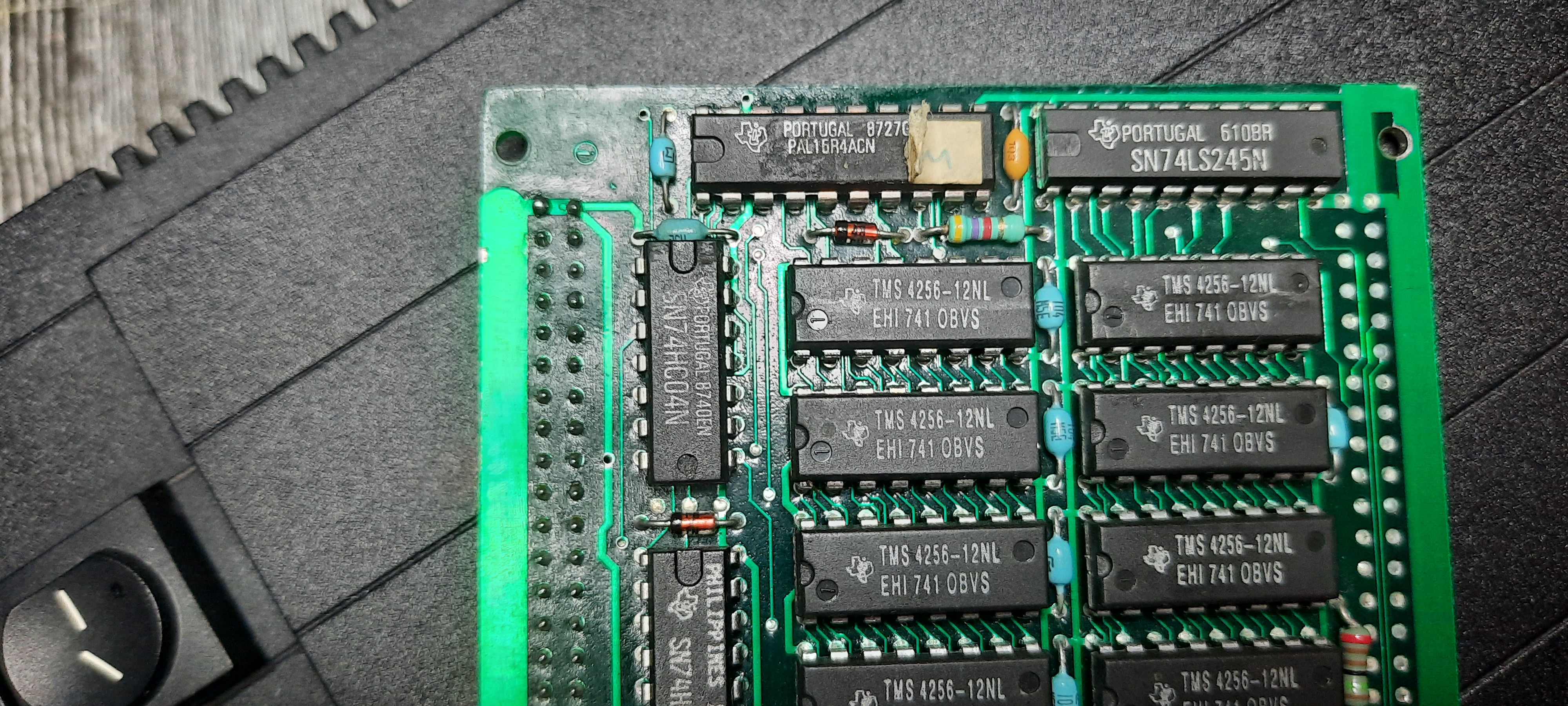

Hello everyone! Is by any chance available the PAL16R4ACN file, which is found on a Sandy Q board 512K RAM doughterboard?
Attachments


Top
ones' complement
Trump Card
Posts: 162
Joined: Tue Nov 30, 2021 1:19 am

Re: Sandy Q board PAL16R4ACN file

Post by ones' complement »

chriskgnr wrote:Hello everyone! Is by any chance available the PAL16R4ACN file, which is found on a Sandy Q board 512K RAM doughterboard?
Not explicitly, but couple of pointers which may help: Try looking at SuperQBoard Modifications and file.

Also this may help further: Sandy SuperQBoard (Herbert) card and file.
