SOLVED !! Has anyone ever got the Alvaro Alea Minerva MKII to work ??

[aalea]

you also need to put i2c_io_bin in the same folder

and the result should look like this ;


Getting this..
https://ibb.co/nsx25RFf

Using miniconfig_bas from tk disk.

AFAIK minicomfig_bas is intended to be compiled and need some toolkits.

In the Minerva utils there is also a miniconfig_obj that is the _bas file compiled and no need anything more.

Try to execute it with ex.

[Arleybls]

HI Alvaro, thank you for the reply.

Indeed I tried the _obj as well but still getting an error..

At the beggining I tought would be headers missing due to unziping as I couldnt remenber how I had created the TK disk, but after properly creating an new one error is still there.

(I am also using your minitrump (tc2.19) which comes with tk2.26)

. I2C_IO is present on flp1_ as well
. looks like both the compiled and the _bas version fail at the same point

[Derek_Stewart]

Hi,

your configuration program can not find the I2C_IO file.

Look at the error line and change the file path to suit.

The miniconfig_bas program from the Minerva Utilities disk, requires the resident extension: I2C_IO_BIN to be on the FLP1_ disk.

The compiled version is not really required, as the Superbasic version will do the job.

[Arleybls]

Hi,

your configuration program can not find the I2C_IO file.

Look at the error line and change the file path to suit.

The miniconfig_bas program from the Minerva Utilities disk, requires the resident extension: I2C_IO_BIN to be on the FLP1_ disk.

The compiled version is not really required, as the Superbasic version will do the job.

- I2C_IO_BIN IS on flp1_

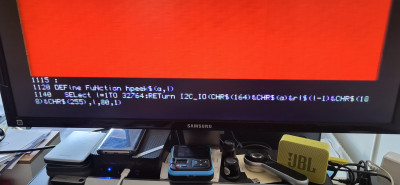

- the line referenced in the error is this one:

Code: Select all

1140   SELect l=1TO 32764:RETurn I2C_IO(CHR$(164)&CHR$(a)&rl$(l-1)&CHR$(188)&CHR$(255),l,80,1)

- I have tried changing the path to flp1_I2C_IO and flp1_I2C_BIN -same error
- Also tried using data_use to point to flp1_ -same error

Perhaps I am missing some basics? Not the most savvy ql user here tbh.

[t0nyt]

Try unremarking line 50 maybe (and put the line 1140 you changed back as it was)? This seems to load the file

50 REMark a=RESPR(202):LBYTES flp1_i2c_io_bin,a:CALL a

to

50 a=RESPR(202):LBYTES flp1_i2c_io_bin,a:CALL a

[Arleybls]

Try unremarking line 50 maybe (and put the line 1140 you changed back as it was)? This seems to load the file

50 REMark a=RESPR(202):LBYTES flp1_i2c_io_bin,a:CALL a

to

50 a=RESPR(202):LBYTES flp1_i2c_io_bin,a:CALL a

Unfortunately same result. Somehow it is failing to execute i2c_io

[Arleybls]

LRESPR flp1_i2c_bin before lrun flp1_miniconfig_bas did the trick...ty all for the inputs

[t0nyt]

That's great news!
